Features

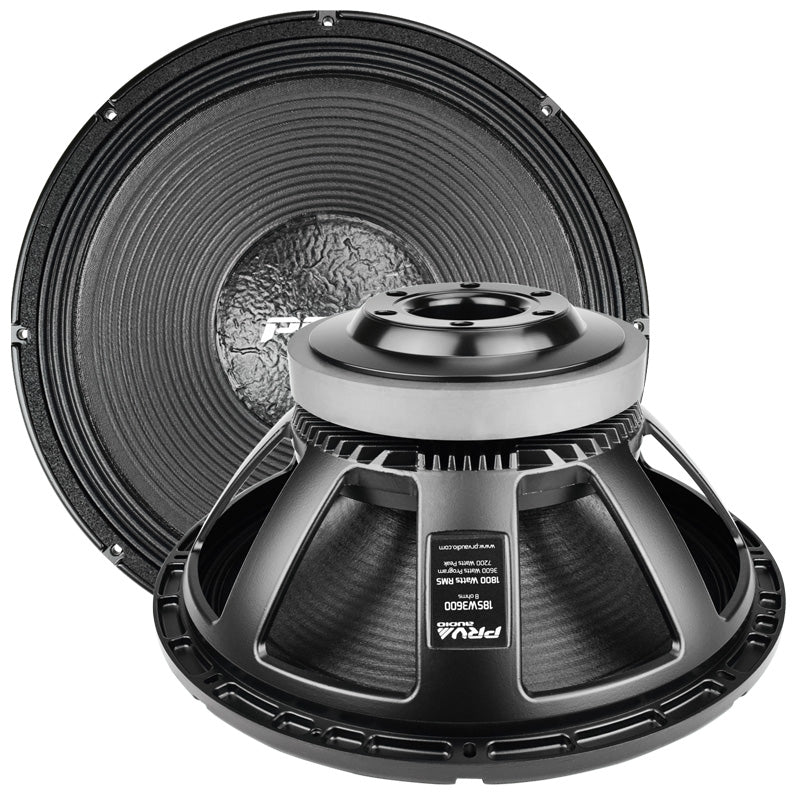

PRV Audio left no boxes unchecked on the new 18SW3600 subwoofer. It features high power handling, 4.5″ inner and outer wound voice coil, fiberglass fiber former, powerful optimized ferrite motor, ribbed paper cone and waterproof cone treatment – all specially designed to provide powerful and accurate sub-bass frequencies with low distortion and low power compression.
Thanks to the optimized ferrite motor assembly of 30 mm, the 18SW3600 is lighter than a comparable ferrite driver at this power handling, making it perfect for mobile DJs and portable PA systems where the highest power handling is wanted with minimum weight.
A double silicon spider system ensures excellent control during large excursions of 54 mm peak-to-peak excursion before damage. A fully optimized T-pole design generates the minimum amount of flux modulation. The new dual forced cooling system guarantees a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 1800 Watts
- Program Power: 3600 Watts
- Sensitivity (1W/1m): 97 dB
- Voice Coil Diameter: 4.5″
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 18″ (457 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 1800 Watts |
| Program Power | 3600 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
45 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 35 – 1,300 Hz |
| Voice Coil Diameter | 4.5″ (114 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 34.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 15.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 199.3 l |
| Excursion (mathematical)*** | Xmax | 13.25 mm |
| Free Air Resonance | Fs | 35.40 Hz |
| Mechanical Factor | Qms | 9.64 |
| Electrical Factor | Qes | 0.42 |
| Total Factor | Qts | 0.40 |
| Cone Area | Sd | 1340 cm² |
| Mechanical Mass | Mms | 254.0 g |
| Bl Factor | Bl | 27.11 Tm |
| Dc Resistance | Re | 5.5 Ohms |
| Inductance | Le | 3.06 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 226.2 g |
| Mechanical Compliance | Cms | 0.079 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 18.31” (465 mm) |
| Front Mount Baffle Cutout | 16.67” (421 mm) |
| Mounting Depth | 7.64” (194 mm) |
| Overall Depth | 8.35” (212 mm) |
| Net Weight | 33.40 Lbs (13.8 kg) |
| Shipping Weight | 38.13 Lbs (17.3 kg) |
| Carton Dimensions W x L x H | 20.27” x 11.49” x 10.24” (515 x 495 x 26 mm) |
