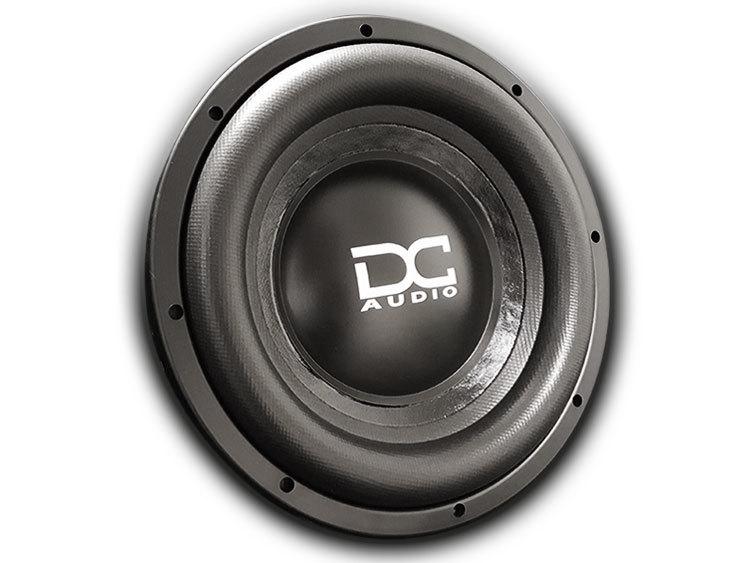

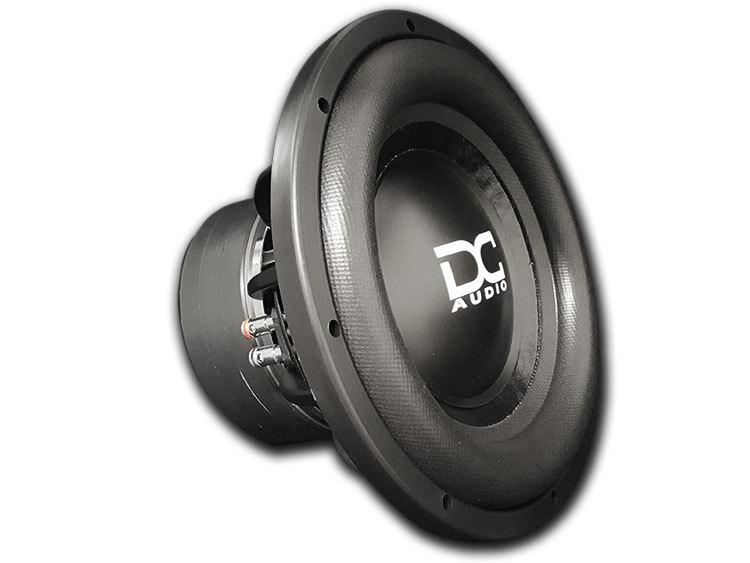

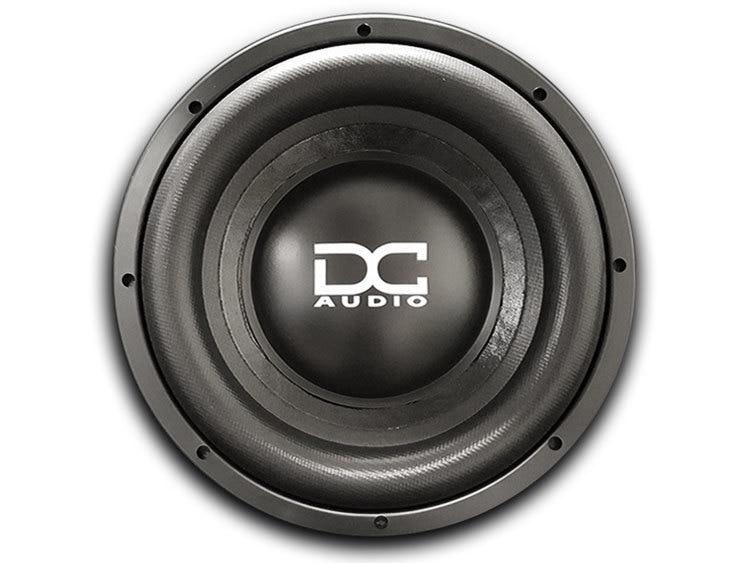

High Quality 15 inch subwoofer, DC Audio M3 Level 4 was designed to take even more power and get even louder than the m1. With fantastic power handling and smashing lows its hard to beat.

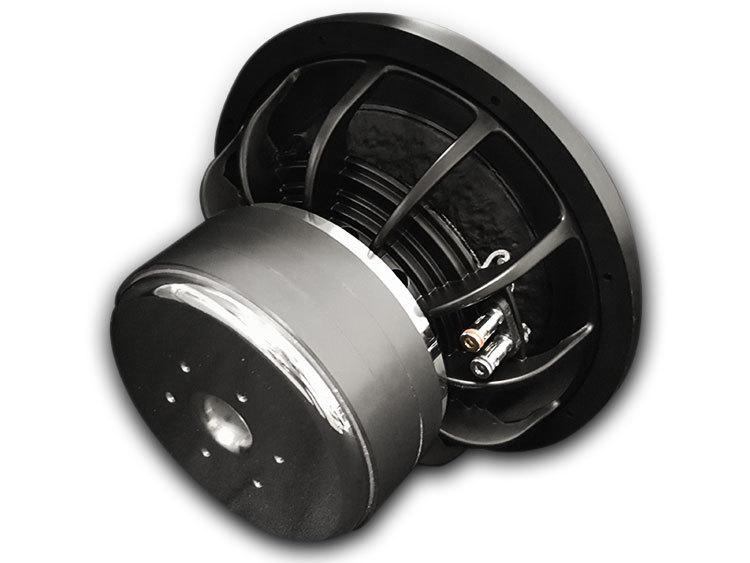

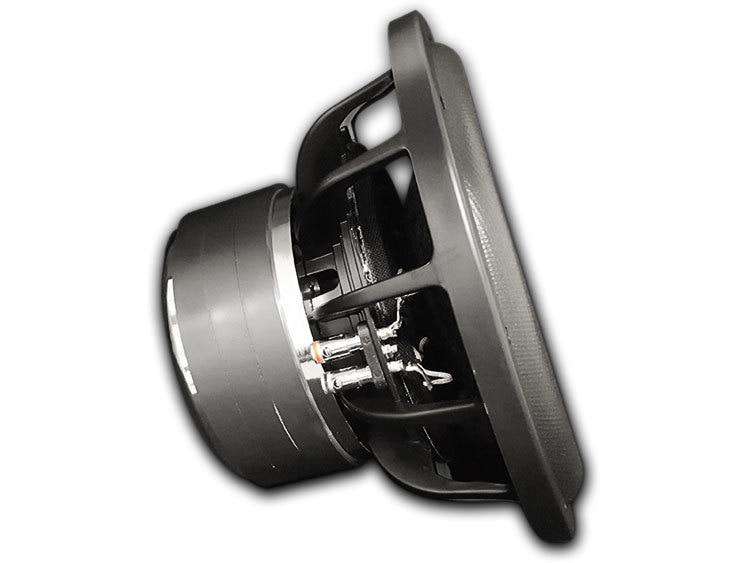

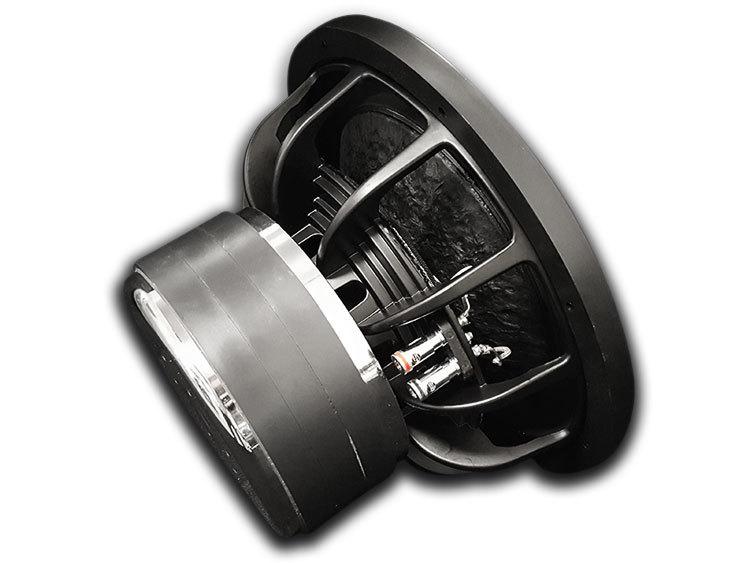

The Level 4 sub is a large triple stacked motor with a chrome top plate and T yoke yielding 23.5mm of X-Max.
Furthermore, you get the upgraded triple progressive spiders, cone, surround, 3" coil, cast basket, push terminals and upgraded lead wire sewn to the spider. This sub is rated at 1400w RMS and 2800w peak.
DC Audio M3 Level 4 Specs
| Model | DC Audio M3 Level 4 |
| Sub Size | 15" |
| Mounting Depth | 8" |
| Mounting Hole Diameter | 14" |
| Outside Driver Diameter | 15.7" |
| Motor Width | 7.75" |
| Weight | 33.5lbs |
| VC Diameter | 3" |
| Displacement | .21³ ft |
| Magnet Weight | 29lbs |
| Power Handling RMS/Peak | 1400 / 2800 |
| Impedance (Ohm) | D1 or D2 |
| Sd | 823cm² |
| Vas | 80.16 liters |
| Cms | .085 mm/N |
| Mms | 318.5 g |
| Fs | 30.6 Hz |
| BL | 19.18 NA |
| Re | 3.82 Ohm |
| Le | 3.78 mH |
| Qms | 10.2 |
| Qes | .644 |
| Qts | .60 |
| Xmax | 23.5 mm |
| Ref SPL @ 1 watt | 87.4 dB |
| Suggested Sealed | 2.75³ ft |
| Suggested Ported | 3.0³ ft |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
Description
High Quality 15 inch subwoofer, DC Audio M3 Level 4 was designed to take even more power and get even louder than the m1. With fantastic power handling and smashing lows its hard to beat.
The Level 4 sub is a large triple stacked motor with a chrome top plate and T yoke yielding 23.5mm of X-Max.
Furthermore, you get the upgraded triple progressive spiders, cone, surround, 3" coil, cast basket, push terminals and upgraded lead wire sewn to the spider. This sub is rated at 1400w RMS and 2800w peak.
DC Audio M3 Level 4 Specs
| Model | DC Audio M3 Level 4 |
| Sub Size | 15" |
| Mounting Depth | 8" |
| Mounting Hole Diameter | 14" |
| Outside Driver Diameter | 15.7" |
| Motor Width | 7.75" |
| Weight | 33.5lbs |
| VC Diameter | 3" |
| Displacement | .21³ ft |
| Magnet Weight | 29lbs |
| Power Handling RMS/Peak | 1400 / 2800 |
| Impedance (Ohm) | D1 or D2 |
| Sd | 823cm² |
| Vas | 80.16 liters |
| Cms | .085 mm/N |
| Mms | 318.5 g |
| Fs | 30.6 Hz |
| BL | 19.18 NA |
| Re | 3.82 Ohm |
| Le | 3.78 mH |
| Qms | 10.2 |
| Qes | .644 |
| Qts | .60 |
| Xmax | 23.5 mm |
| Ref SPL @ 1 watt | 87.4 dB |
| Suggested Sealed | 2.75³ ft |
| Suggested Ported | 3.0³ ft |
Shipping
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
