Incriminator Audio Death Penalty R7 12" Subwoofer D1/D2

Our Death Penalty has been the relentless beating heart of our subwoofer line up from the beginning.  We have put so much testing and time into continually improving what is essentially the centerpiece of what makes us Incriminator Audio.  This is the sub that put us on the world stage.  We introduce to you the R7 model of our outstanding Death Penalty

For 2023, we put the Death Penalty on a little bit of a diet, stripping down over 10 pounds of mass.  That is something that will really add up when you are trying to install this beast, as well as the multi sub builds that require numerous DP’s.  Don’t worry, we didn’t lose anything when it comes to performance with that trim down, quite the opposite.  With a major motor redesign, we gained some serious motor force over the previous version.  This helped with greater power handling, as we are bumping the Death Penalty up to 2,500 watts rms!

The new, 8-layer, 3” Reserve coil was an essential piece to help aid in that noticeable power handling jump.  That beefcake of a voice coil, it can really soak up serious power, while retaining the same great overall sound that people have come to love from the Death Penalty.  Right there, that is what makes the IA DP such a strong choice and why it has been so popular for so many years.  Balanced performance, for even the most demanding of audio install needs.

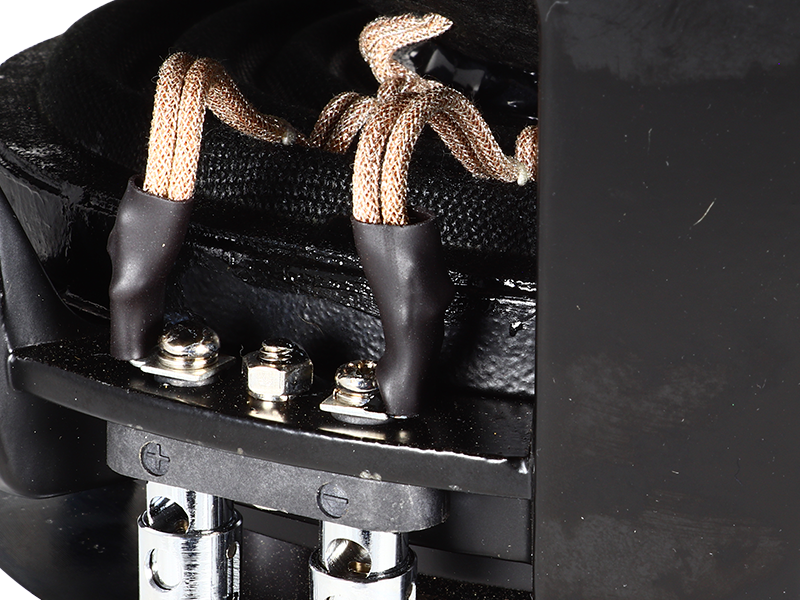

Our Death Penalty is customizable as before, with the optional extra spiders for those who need a little more mechanical power handling.  A reinforced with Kevlar, triple joint, to aid in extreme abuse, as well as 8 gauge direct connect leads to help with wiring and power flow.

If you are after high quality bass that few are able to achieve, and what the peace of mind that comes with 20 years of development, you have come to the right place.  The Incriminator Audio Death Penalty is an extremely proven monster, and now is even better than before.  Take the leap if you think you can handle it.

• Features

  • 8 Spoke Black Cast Basket
  • 3" Heavy Gauge 4 Layer Flat Aluminum Voice Coil
  • Triple Black Progressive Spiders with Dual Woven Tinsel Leads
  • High Pressure Kraft Fiber Reinforced Cone
  • Multi-Layer Foam Surround
  • 9.45" 330 Oz Double Magnet Structure with Nickel Finish
  • 1040 Oz / 65 Pound Motor Structure
  • 8mm Thick Aluminum Shorting Ring for Inductance
  • Interlocking Aluminum Spider Spacer Assembly
  • CILD² - Center Interlocking Dustcap
  • ADC - Air Driven Cooling
  • S.T.A.R. Motor Design for Built in Motor Cooling
  • Nickel Plated Push Terminals
  • Wrap Around Rubber Gasket
  • 2500 Watt RMS Rated
  • DVC 1 ohm or 2 ohm




  • Specifications

    Driver	12 Inch	15 Inch	18 Inch	21 Inch
    FS	43 Hz	40 Hz	38 Hz	34 Hz
    Re	2Ω Series	2Ω Series	2Ω Series	2Ω Series
    Qms	8.13	8.98	9.32	10.51
    Qes	0.40	0.43	0.47	0.52
    Qts	0.37	0.40	0.43	0.49
    Mms	240 g	275 g	330 g	395 g
    Cms	0.05 mm/N	0.05 mm/N	0.05 mm/N	0.05 mm/N
    Sd	480 cm²	810 cm²	1210 cm²	1620 cm²
    Vas	23 L	56 L	123 L	189 L
    Spl	90.1 dB	92.8 dB	94.1 dB	95.8 dB
    BL	22.6	22.6	22.6	22.6
    X-max	29 mm	29 mm	29 mm	29 mm
    Sub Diameter	12.37"	15.50"	18.50"	21.25"
    Mounting	11.12"	14.12"	16.87"	19.25"
    Depth	9.99"	10.74"	12.12"	12.74"
    Displacement	.22 Cu. Ft.	.23 Cu. Ft.	.25 Cu. Ft.	.26 Cu. Ft.
    Power	2500 RMS	2500 RMS	2500 RMS	2500 RMS

    Enclosure Specifications

    • Please Visit our Enclosure Specifications Page for more information
