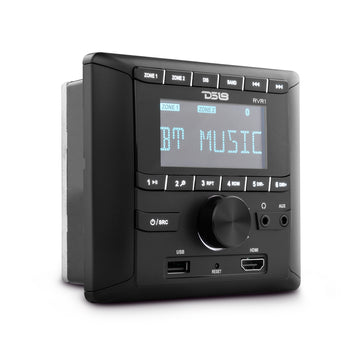

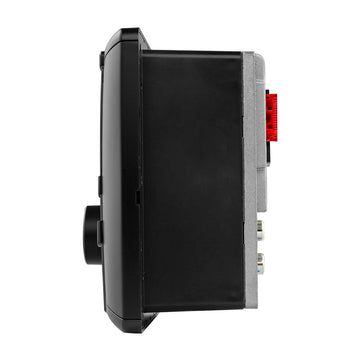

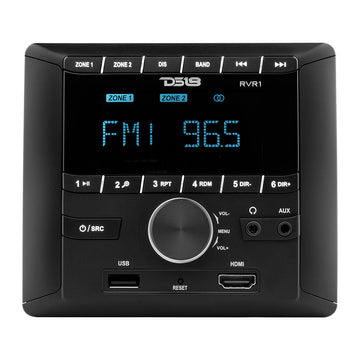

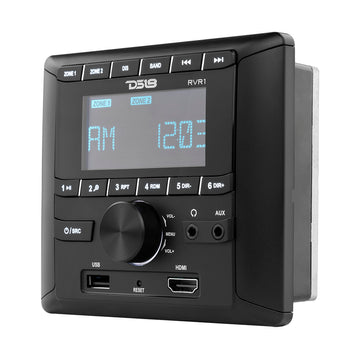

Take control of your RV’s Audio with DS18’s RV.R1!
The RV.R1 was made to give recreational vehicle users a high-quality receiver with the features to expand the sound available to them while they take on the open road.
This easy mount stereo receiver comes equipped with all the features needed to take your recreational vehicle’s audio to the next level: FM Radio, AM Radio, Bluetooth, USB connectivity, and HDMI pass through.
RDS integrated in the FM Radio tells users exactly what song they’re listening to, and stores up to 18 memory stations. The Bluetooth (v5.0) installed in this receiver works at extreme distances so you can stream your music from anywhere. The USB Port is made for music streaming and charging any device. Users also have the choice of connecting their television to their receiver to play its contents from anywhere in the vehicle.
A 2-Band equalizer has been incorporated in this receivers features for complete control over two parts of your frequency spectrum. Take even more control over the audio in your vehicle with Volume/Bass/Treble/Balance/EQ/Loudness features in this receivers Audio Control Equalizer.
At 4 ohms this unit offers 4CH x 17W Continuous Power Output and 50W x 4CH Max Power Output which is generally enough to power all entry level speakers. The PRE-AMP outputs will deliver a maximum of 4 volts for subwoofers, and 2.5 volts per zone for your amplifiers to get the clearest and distortion free sound available. Also 3 sets of preamp outputs (SUB, Front, and Rear) will be there for you to configure to your specific setup.
Highlights
- Receiver specially designed for RV’s
- Square Design for Easy Wall Mounting
- FM Radio with RDS and 18 Memory Stations
- AM Radio with 12 Memory Stations
- MP3, WMA USB Reader up to 64GB
- Bluetooth v5.0
- HDMI pass-through for easy TV integration
- 2.75” VA LCD Display with LED Backlight
- 50W x 4CH Max Power Output
- 2 Bands Equalizer

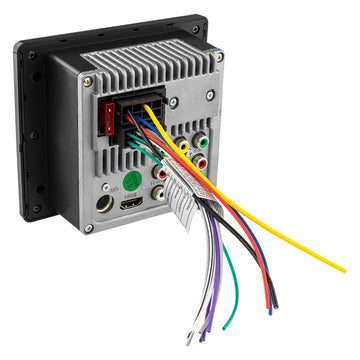

- RCA Pre-OUT: Front / Zone 1, Rear / Zone 2 (2.5 Volts) & Subwoofer (4 Volts)
Great For
- RV Audio
- Trailers Audio
| SPECIFICATIONS | |
| GENERAL | |
| Rated Power Source: | 14.4V DC (11V to 16V operation) |
| Maximum Current Consumption | 10 Amp |
| Dimensions (W x H x D) | |
| Chassis | 97mm x 100mm x 150mm |
| Bezel frame | 130mm x 112mm x 17mm |
| Weight | 14.2Oz / 403 grams |
| DISPLAY | |
| Screen Size | 2.75 inch / 66 x 31mm |
| Display Type | VA LCD |
| Temperature Operation | -20°C to +60°C (14°F to 140°F) |
| AUDIO | |
| Maximum Power Output | 50W X 4 Ch @ 4 ohms (14.4v) |
| Continuous Power Output | 17W x 4 Ch @ 4 ohms (14.4v) |
| Pre-output Level | Zone 1/2: 2.5 Volts / Subwoofer: 4 Volts (14.4V) |
| Equalizer | 2 bands (Bass: 100Hz, Treble: 10KHz) Gain: +/- 7dB |
| Preset EQ | Flat / Rock / Pop / Classic |
| Audio Control | Volume / Balance / Loudness / Bass / Treble / Zone Volume |
| Signal to Noise Ratio | >60dB |
| THD | <0.3% |
| Frequency Response | 20Hz – 20Khz |
| USB PLAYER | |
| Type / Class | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Format Files Supported | MP3, WMA, FLAC, MAV |
| Info Display Format | ID3 Tag |
| Memory Size Reader | up to 64 Gb |
| Max Current Supply | 1.5 Amp (Charging USB port) |
| Number of USB Ports | 1 x Front (Audio / Charging) |
| CONNECTIVITY | |
| BT Version / Services | V5.0 / Audio Streaming |
| Audio Protocol | A2DP |
| Aux Input | Front 3.5mm Jack Stereo Audio / Rear RCA A/V |
| Headphone | Front 3.5mm Jack Stereo |
| HDMI | Rear Output (To HDTV) / Front Input (From Source) |
