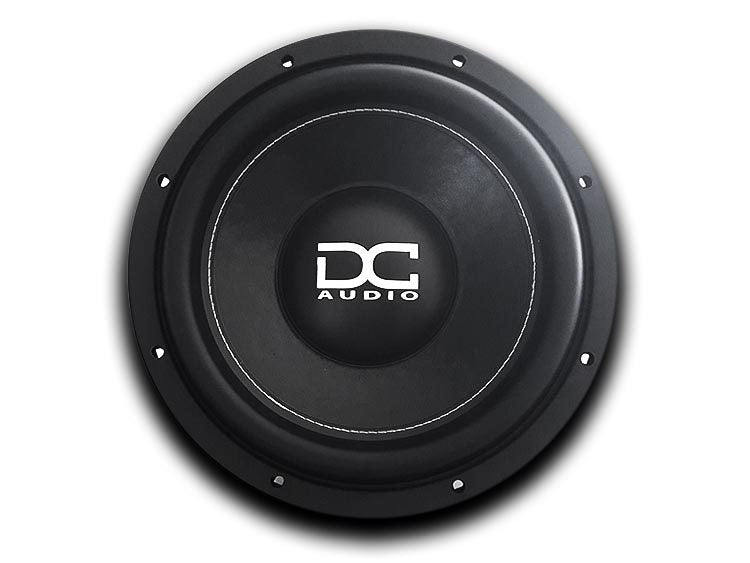

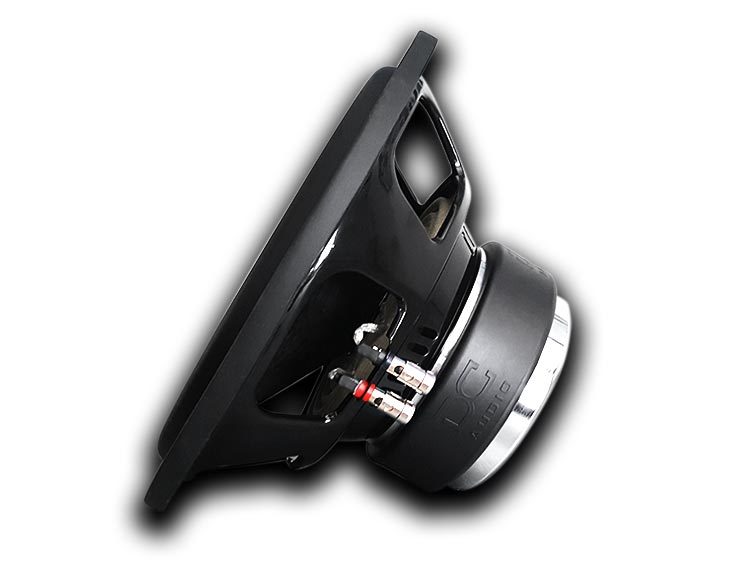

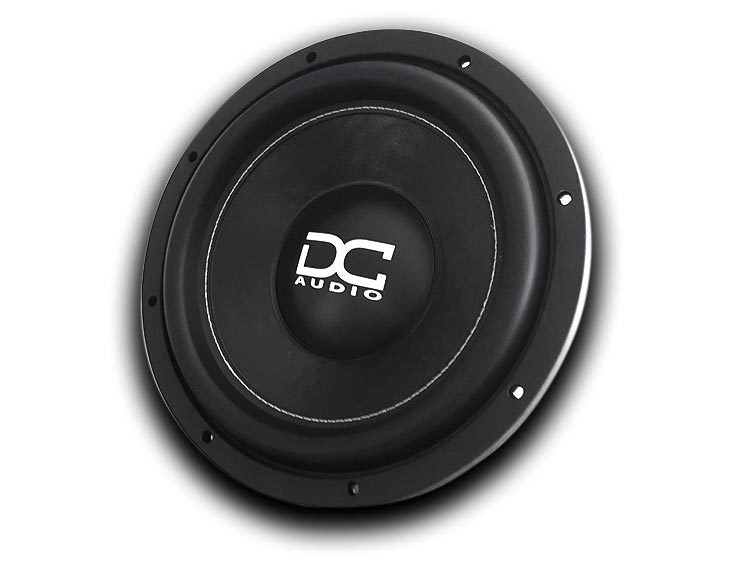

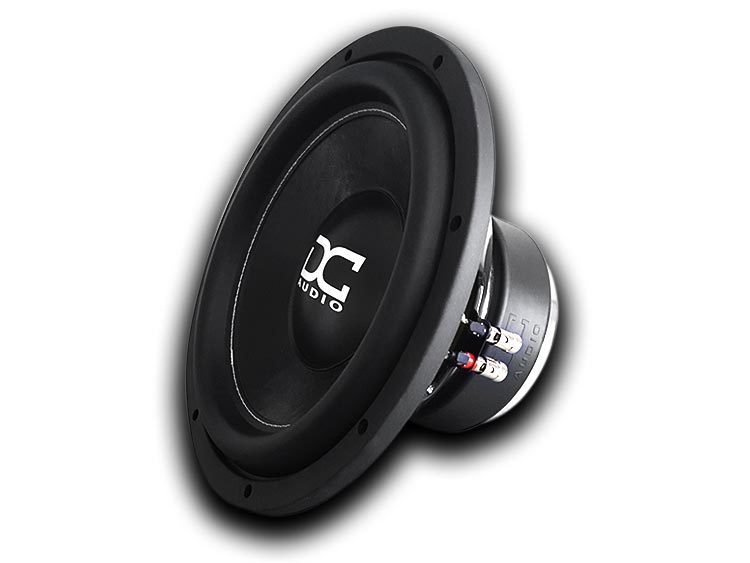

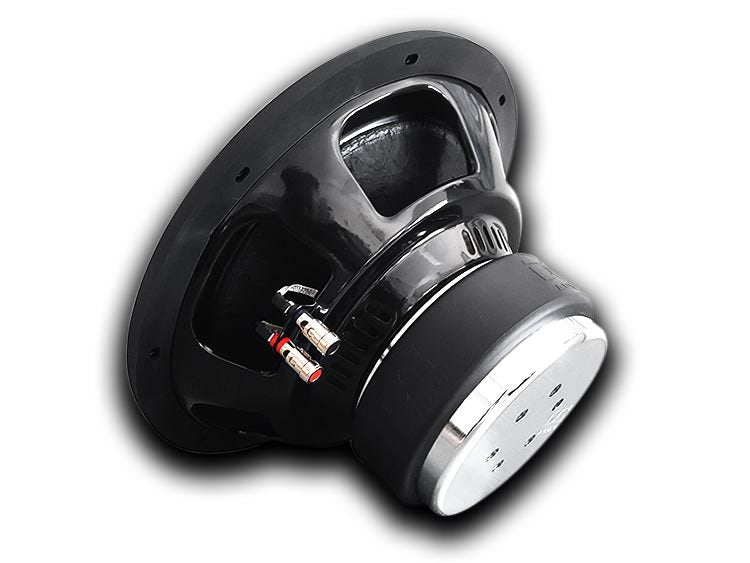

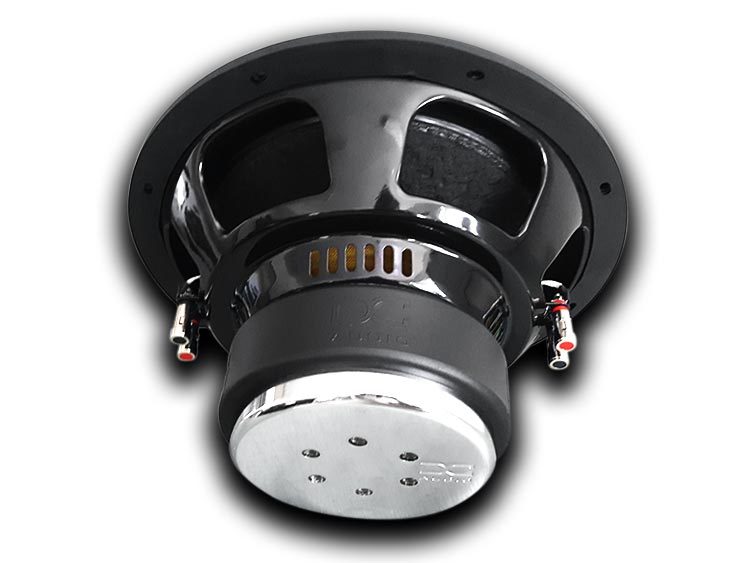

The Long-awaited DC Audio M4 Level 1 10 Inch Subwoofer is finally here!
It starts out with a double-stacked FEA optimized motor. A chrome top plate and T yoke. 2.0" voice coil, Glossy Black stamped Steel Frame, push terminals and a rating suggestion of 300w RMS/600w peak power handling.
This sub works great in sealed or ported enclosures.
DC Audio M4 Level 1 10 Inch Subwoofer Specs
| Sub Size | 10" | 12" |
| Mounting Depth | 6" | 6.5" |
| Mounting Hole Diameter | 9.3" | 11.2" |
| Outside Driver Diameter | 11.0" | 12.5" |
| Weight | 18lbs | 18.2lbs |
| VC Diameter | 2.0" | 2.0" |
| Displacement | .12³ ft | .14³ ft |
| Magnet Weight | 15lbs | 15lbs |
| Power Handling RMS/Peak | 300/600 | 300/600 |
| Impedance (Ohm) | D2 or D4 | D2 or D4 |
| Sd | 324cm² | 481cm² |
| Vas | 17.1 liters | 47.7 liters |
| Cms | 0.12 mm/N | 0.12 mm/N |
| Mms | 146.8 g | 168 g |
| Fs | 37.4 Hz | 32.6 Hz |
| BL | 23 N/A | 23.2 N/A |
| Re | 8 ohm | 8 ohm |
| Le | 3.88 mH | 2.79 mH |
| Qms | 3.15 | 2.52 |
| Qes | 0.52 | 0.51 |
| Qts | 0.45 | 0.43 |
| Xmax | 19 mm | 19 mm |
| Ref SPL @ 1 watt | 84.2 dB | 86.9 dB |
| Suggested Sealed | .5³ ft | .75³ ft |
| Suggested Ported | 1.0³ ft | 1.25³ ft |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
Description
The Long-awaited DC Audio M4 Level 1 10 Inch Subwoofer is finally here!
It starts out with a double-stacked FEA optimized motor. A chrome top plate and T yoke. 2.0" voice coil, Glossy Black stamped Steel Frame, push terminals and a rating suggestion of 300w RMS/600w peak power handling.
This sub works great in sealed or ported enclosures.
DC Audio M4 Level 1 10 Inch Subwoofer Specs
| Sub Size | 10" | 12" |
| Mounting Depth | 6" | 6.5" |
| Mounting Hole Diameter | 9.3" | 11.2" |
| Outside Driver Diameter | 11.0" | 12.5" |
| Weight | 18lbs | 18.2lbs |
| VC Diameter | 2.0" | 2.0" |
| Displacement | .12³ ft | .14³ ft |
| Magnet Weight | 15lbs | 15lbs |
| Power Handling RMS/Peak | 300/600 | 300/600 |
| Impedance (Ohm) | D2 or D4 | D2 or D4 |
| Sd | 324cm² | 481cm² |
| Vas | 17.1 liters | 47.7 liters |
| Cms | 0.12 mm/N | 0.12 mm/N |
| Mms | 146.8 g | 168 g |
| Fs | 37.4 Hz | 32.6 Hz |
| BL | 23 N/A | 23.2 N/A |
| Re | 8 ohm | 8 ohm |
| Le | 3.88 mH | 2.79 mH |
| Qms | 3.15 | 2.52 |
| Qes | 0.52 | 0.51 |
| Qts | 0.45 | 0.43 |
| Xmax | 19 mm | 19 mm |
| Ref SPL @ 1 watt | 84.2 dB | 86.9 dB |
| Suggested Sealed | .5³ ft | .75³ ft |
| Suggested Ported | 1.0³ ft | 1.25³ ft |
