• Double DIN In-Dash Bluetooth Mechless Car Stereo Receiver
• 6.8" WVGA Display Display
• 50 watts x 4 channel MAX / 22 watts x 4 channel RMS
• 3 Pairs of 4.0V preamp outputs (front/rear/subwoofer)
• 13-band equalizer

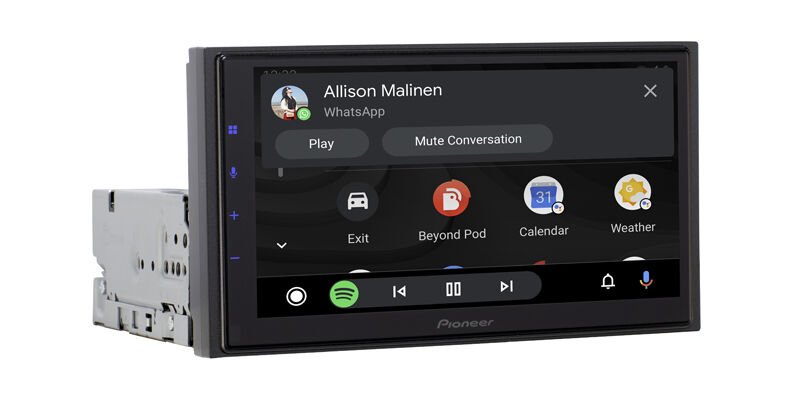

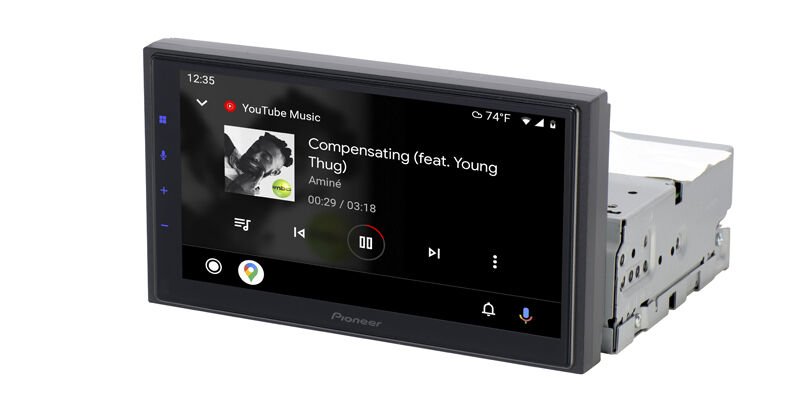

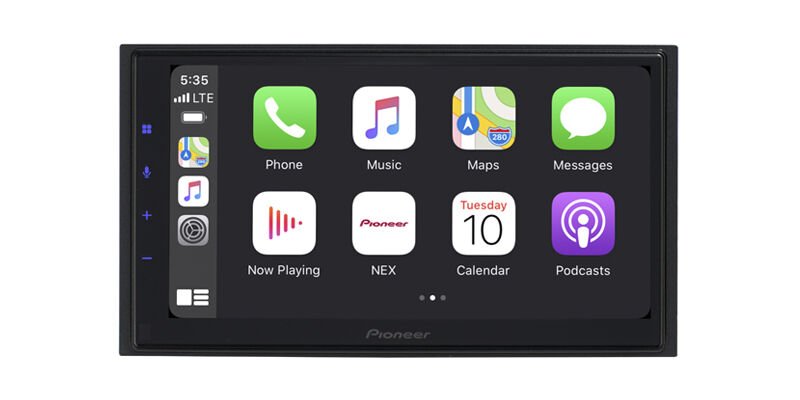

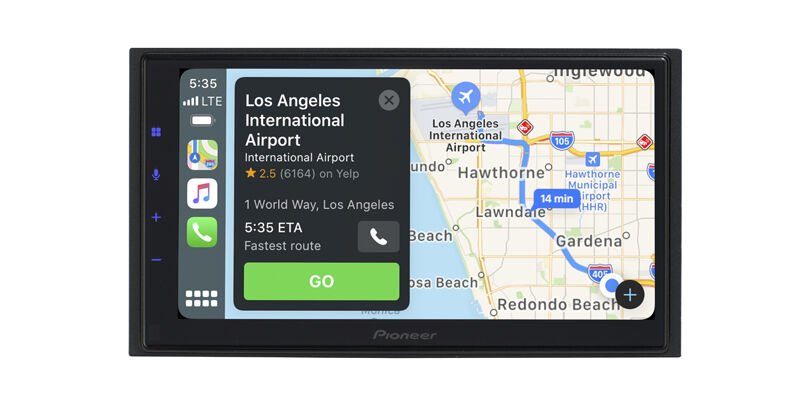

Get to know the Pioneer DMH-WC5700NEX
There are some vehicles that are difficult to fit with a stereo. Pioneer's DMH-WC5700NEX helps resolve that problem all credited to its modular design that offers a "black box" which is separate from the display. Its 6.78" screen works in most double-DIN (4' tall) openings regardless of its depth. This device is a mechless receiver meaning any type of CD can't be played but media can still be enjoyed with or without wires through Bluetooth, Apple CarPlay, Amazon Alexa, Android Auto, Bluetooth, Screen Mirroring and an HD Radio. Additionally, there is a rear USB input, a mini rear aux input and a micro-HDMI input. The 13-band equalizer maximizes audio signal sent to the built-in amplifier. It's iDatalink Maestro (not included) compatible which lets you keep factory extras that you'd otherwise lose when a new radio is installed. This product features an innovative and powerful new user interface that is responsive and highly customizable. It is designed especially for today's smartphone driven lifestyle
Product Details:
- Double DIN In-Dash Bluetooth Mechless Car Stereo Receiver with Remote
- 6.8" WVGA Display
- Built-in Bluetooth for hands-free and audio streaming
- CEA-2006 compliant amplifier
- Seperate DIN (2" tall) chassis can be installed together or independently while fitting into difficult vehicles where standard radios won't fit
- Power Output:
- Peak: 50 watts x 4 channel
- RMS: 22 watts x 4 channel
- Wireless remote control included
- MP3 ID3 Tag Display (Title/Artist/Album)
Playback and Audio Features:
- Plays media loaded with MP3, WMA, AAC, and high-res FLAC, WAV, and DSD music files
- AM/FM tuner with 18FM/6AM presets
- 13 band Equalizer
Expandability Options:
- 6-channel preamp outputs (4-volt, front, rear, sub)
- SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required and sold separately
- Front Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
- Front and Rear USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
- Second camera input for an optional front-view camera
- Built-in adjustable parking guides to back up safely
- Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input
- Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately
- Rear RCA Video Output: Used for connection to separate monitors and other devices
- Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
Bluetooth Features:
- Built-in Bluetooth technology for hands-free talking and audio streaming
- Bluetooth range up to 5 meters
- Supports SMS message notifications and A2DP audio streaming
- Bluetooth Profiles Supported:
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
- SYNC: Synchronization Profile enables the synchronization of Personal Information Manager (PIM) items
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- Works with most Bluetooth enabled cell phones
- Includes a built-in microphone for clear, convenient, distortion-free talking***
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
FEATURES & SPECS
Key features
Key features
Apple CarPlay
Wireless Android Auto
Wireless CarPlay
Android Auto
Bluetooth
Touchscreen
Floating Touchscreen
Built-in navigation
Maestro compatible
SiriusXM ready
USB input
HDMI input
Aux input
Wireless Android Auto
Wireless CarPlay
Android Auto
Bluetooth
Touchscreen
Floating Touchscreen
Built-in navigation
Maestro compatible
SiriusXM ready
USB input
HDMI input
Aux input
In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
None
Motorized Faceplate
No
Remote Control
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
13 band
Display Type
WVGA Display
Display Color
Full Color
CD Signal-to-Noise
90 dB
CEA-2031 Compliant
Yes
Playback Features
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
CD-R/RW Playback
No
MP3 Playback
Yes
WMA Playback
Yes
Video playback
Yes
DVD Region Number
Dual Zone
Hi-Res Certified
Video in-motion bypass
No
Audio / Video Inputs
USB Input
Yes
Number of Front USB Inputs
Number of Rear USB Inputs
1
Additional Audio/Video Inputs
1 Video RCA Input
HDMI
1 Set of Rear RCA A/V Inputs
HDMI
1 Set of Rear RCA A/V Inputs
Monitor Screen Features
Touchscreen
Yes
Screen Size
6.8"
Monitor Angle Adjustment
None
Display Adjustment
Brightness
Color
Contrast
Dimmer
Hue
Temperature
Color
Contrast
Dimmer
Hue
Temperature
MirrorLink Compatible
No
Device Mirroring
Yes
Navigation Features
Map Database
Determined By Phone Connected
Traffic Lane Guidance
Navigation During Audio Playback
Yes
Navigation During Video Playback
No
Languages
English
Map Dimensional Display
2D
3D
3D
Speed Display
Map Source
Determined by phone connected
Text-to-Speech
Traffic Tuner
Customizable POI
Expandability Features
Navigation
Determined by phone connected
Compatible Smartphones
iPhone (iOS)
Android
Android
Audio/Video Outputs
HDMI
1 Video RCA Output
1 Video RCA Output
Satellite Radio
SiriusXM Ready (Accessory sold separately)
HD Radio
Yes (Built-In/Included HD Radio Tuner)
Bluetooth Connectivity
Yes (Built-in/Included [Bluetooth Controls, Adapter and/or Microphone Included])
A2DP Music Streaming
Yes
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Maestro Compatible
Yes
Rear View Camera Input
Yes (Universal)
Memory Card Reader
No
Smartphone Integration
iPhone/iPod Features
Apple CarPlay
Apple CarPlay (wireless)
MirrorLink Control
Apple CarPlay (wireless)
MirrorLink Control
Android Features
Android Auto
Android Auto (wireless)
Android Auto (wireless)
Android Audio Integration
Yes (via Bluetooth Connection)
Android Video Connection
What is in the box?
Product and accessories
In-dash receiver
Paperwork
User manual
Quick start guide
Quick start guide
Authorized Dealer
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
