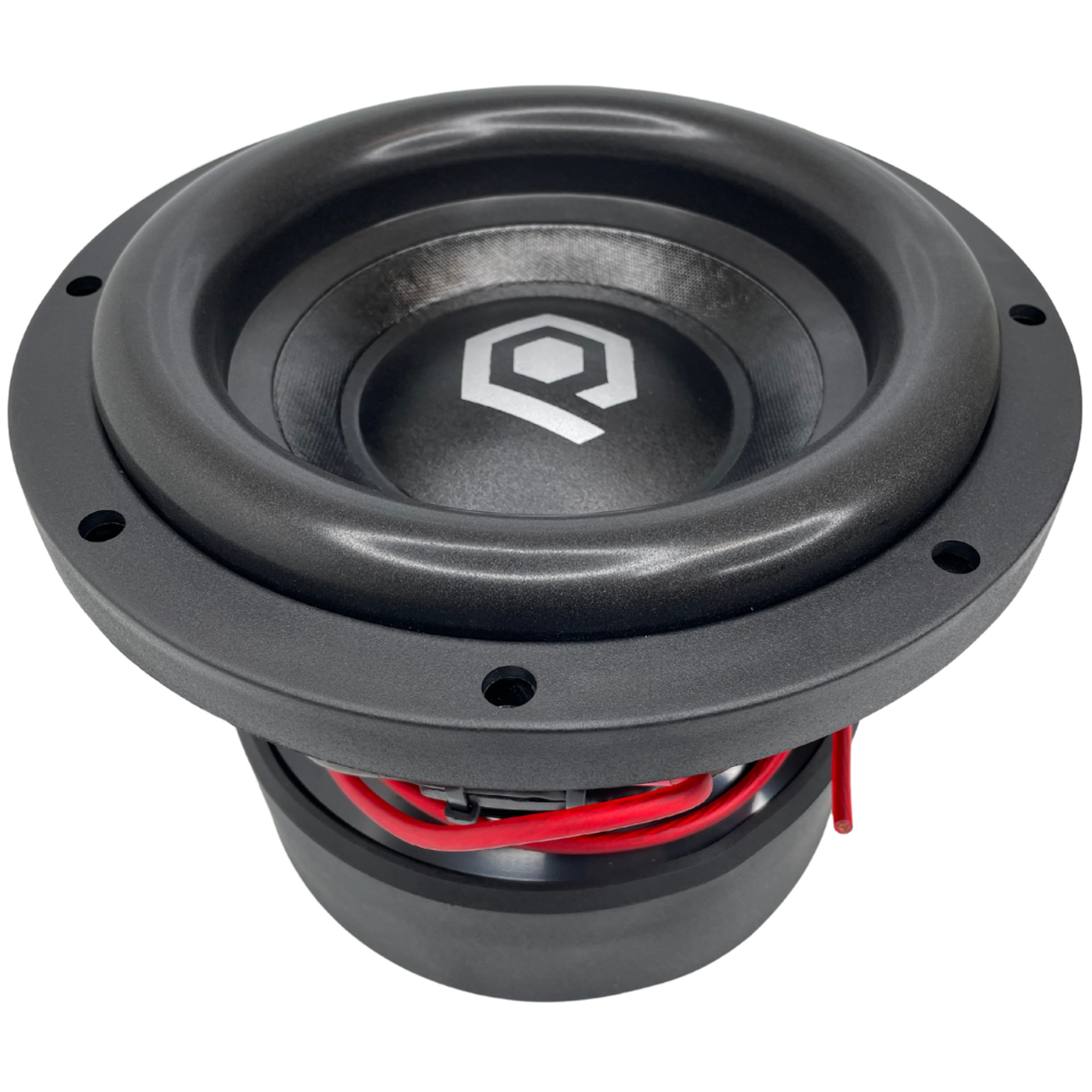

WELCOME BACK AND NEW TO THE 2024 LINEUP - THE HDX 3 10"
The HDX3 series heavy-duty subwoofer is well suited for use as a competition subwoofer with a beefy, monstrous, made in the USA dual voice coil! Find it in 12 inch, 15 inch and 18 inch sizes!

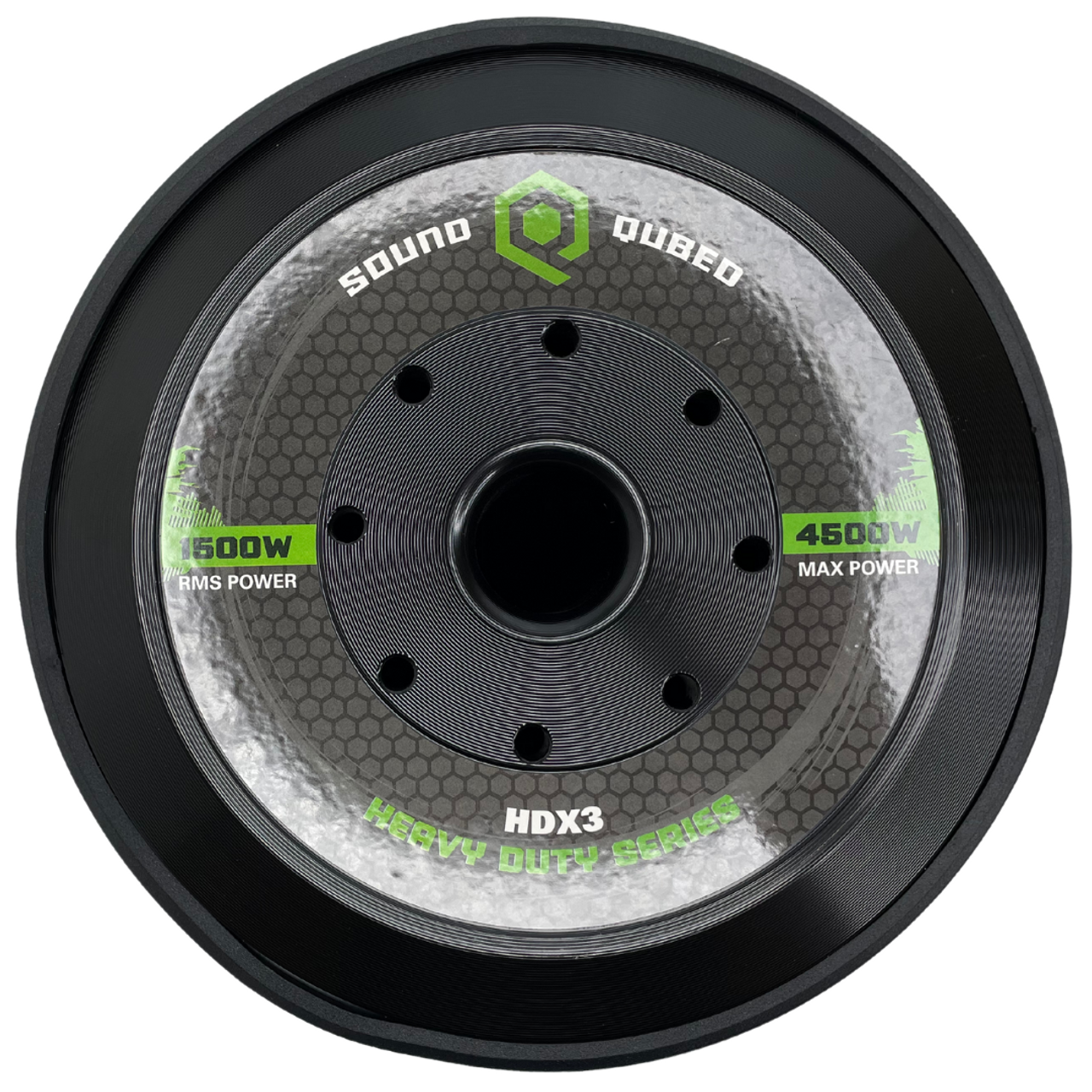

The HDX3 can handle 1500 Watts RMS power and 4500 Watts Peak power for burps.

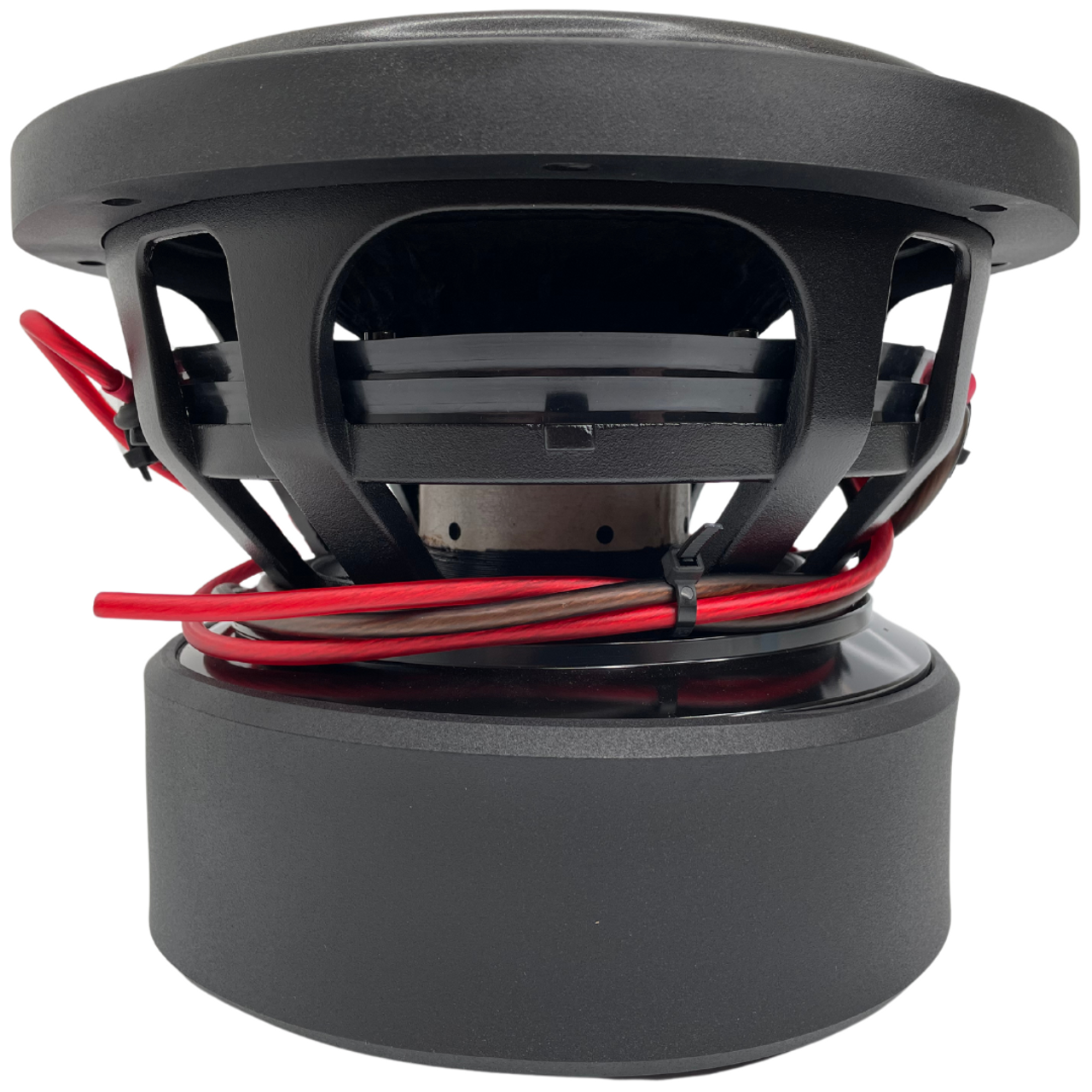

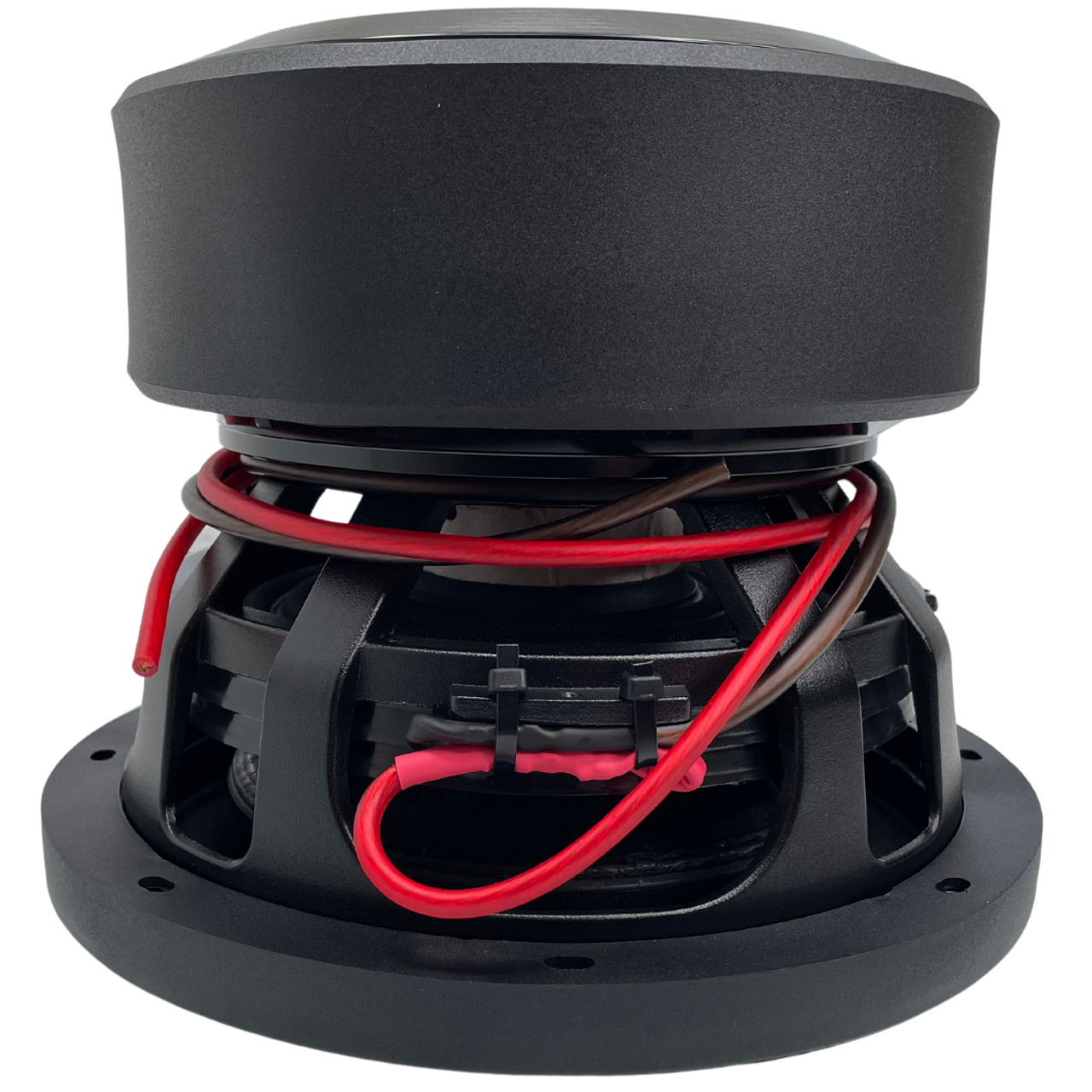

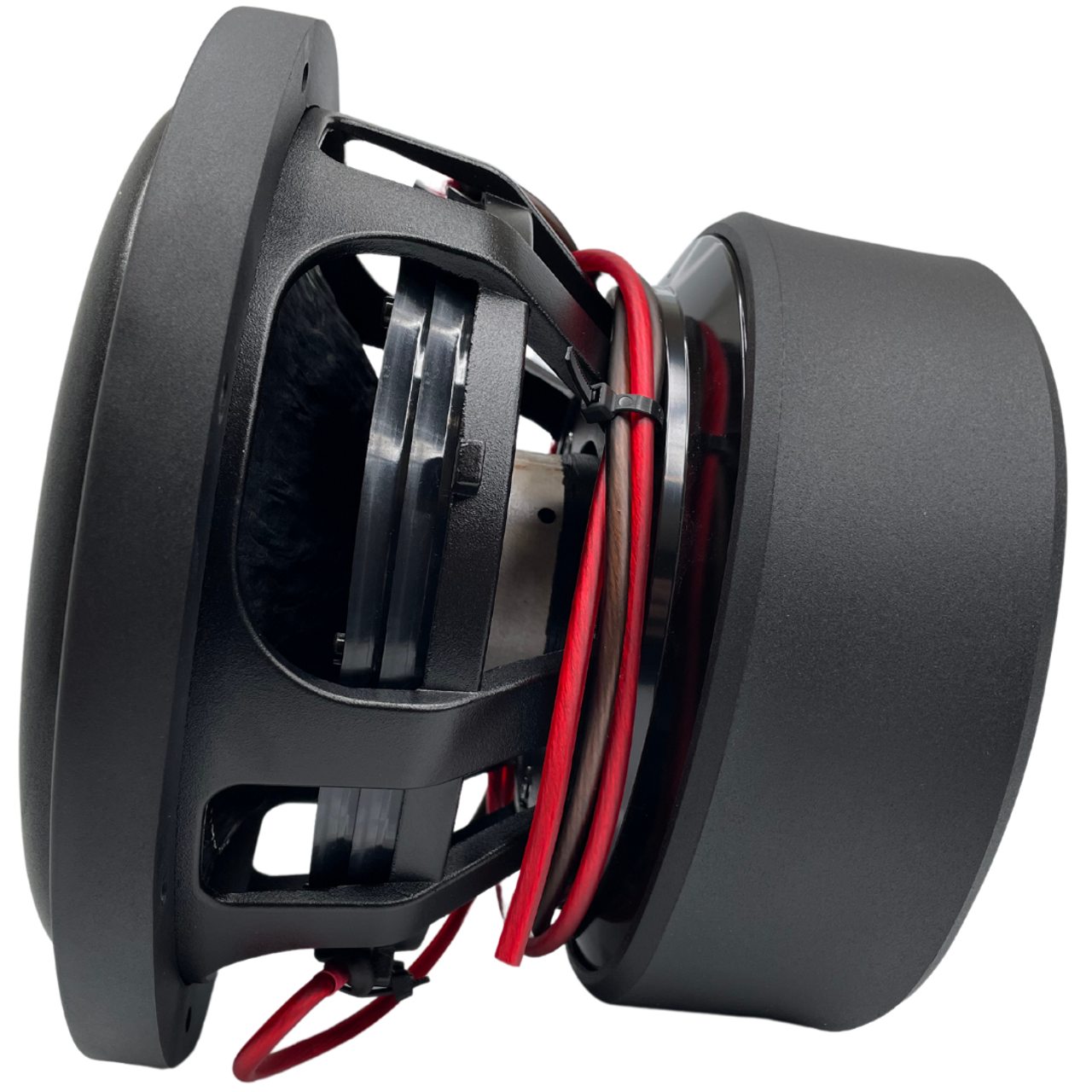

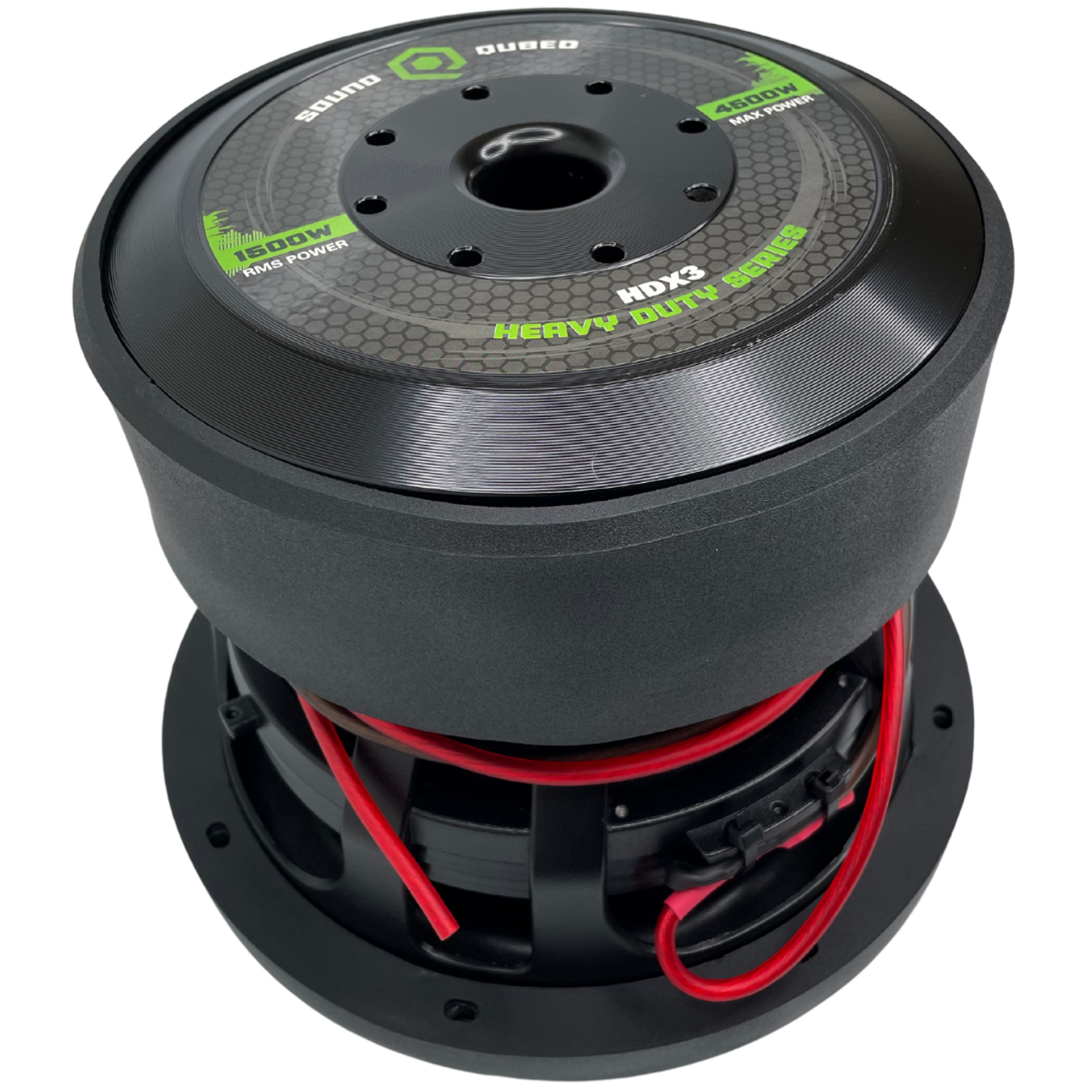

HDX3’s motor features a thick top plate, high motor force, and a tight gap for high-efficiency speaker design. A taller 4-spoke, cast aluminum frame makes room for a larger diameter spider for lower tuning and greater accuracy. The larger diameter spider’s new roll profile allows for low F’s without sacrificing power handling or control.

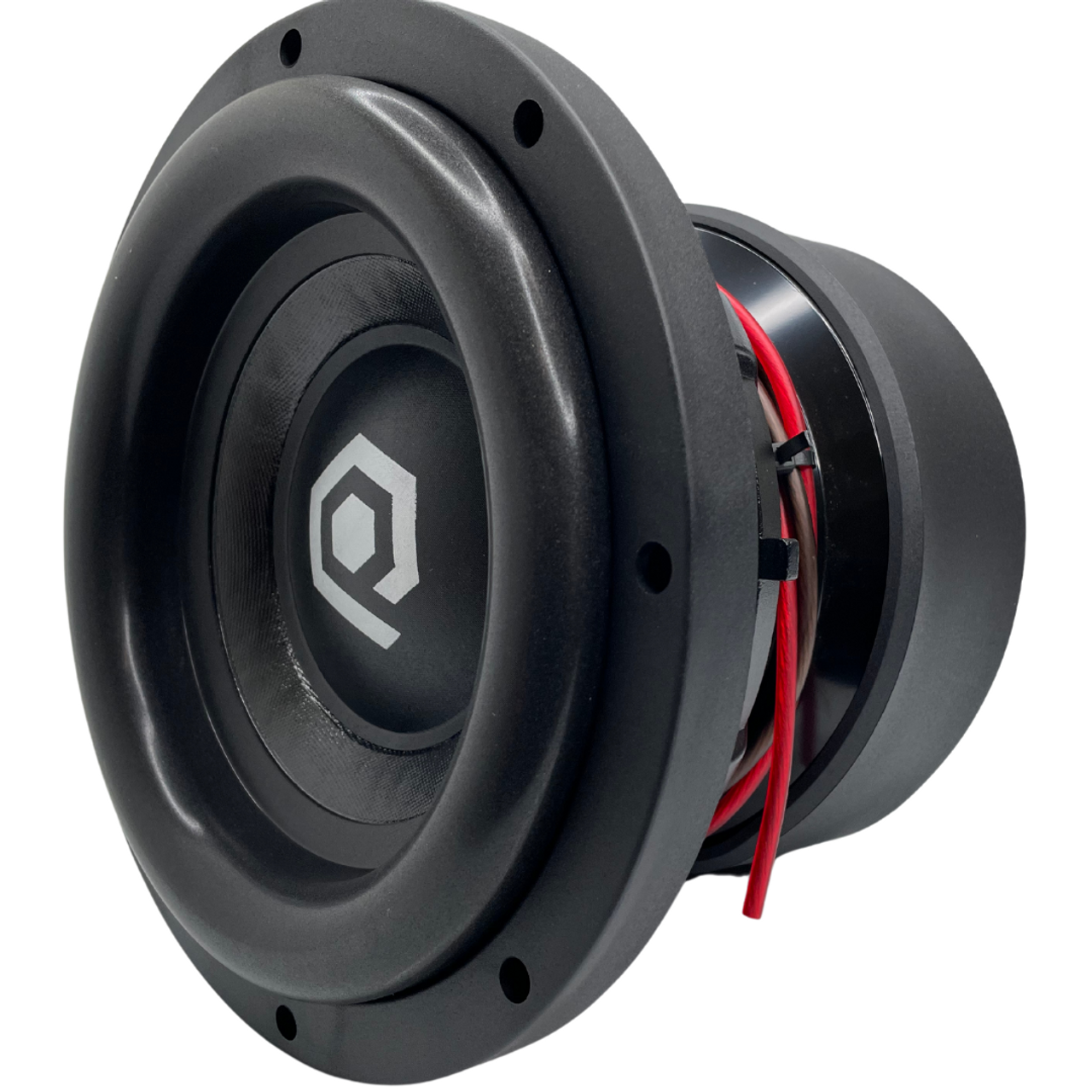

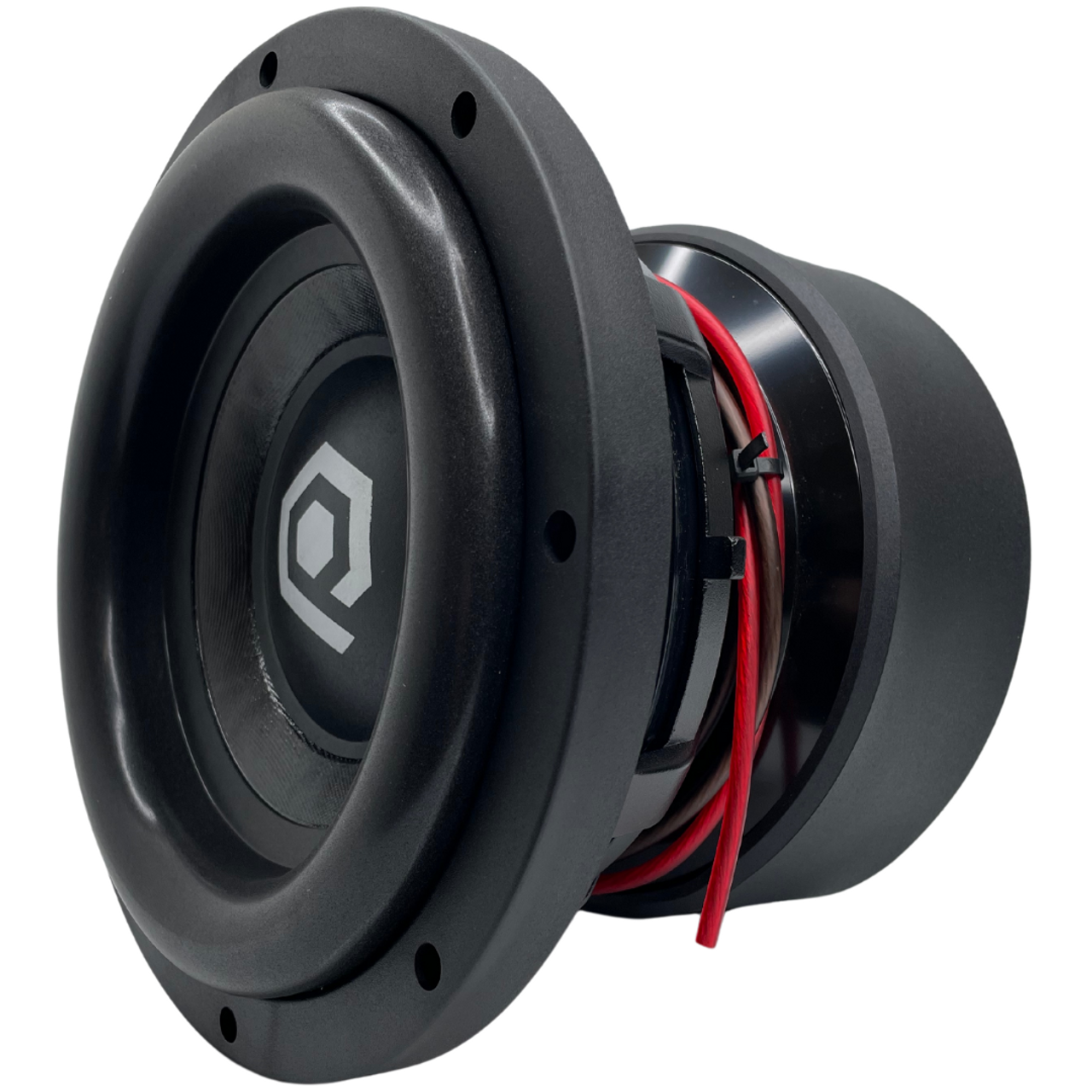

The HDX3’s taller and wider surround allows for even more precise excursion and new pulp-blend cones are stronger than previous fiberglass-laminate designs- And they’re lighter too!
We are ditching the stitching on the 1500 Watt Power Band.
Other improvements over the HDC series subwoofers include the presence of a thicker, more robust aluminum former, as well as black anodizing. Double slit venting and a higher temperature resin are included for increased cooling abilities, enhanced performance, and a longer subwoofer life.
| Model | HDX310 | HDX312 | HDX315 | HDX318 |
| RMS Power | 1500 W | 1500 W | 1500 W | 1500 W |
| Peak Power | 4500 W | 4500 W | 4500 W | 4500 W |
| Magnet Weight | 300 oz | 300 oz | 300 oz | 300 oz |
| Coil Diameter | 3" | 3" | 3" | 3" |
| Coil Length | 50 mm | 50 mm | 50 mm | 50 mm |
| Usable Throw | 68 mm | 68 mm | 68 mm | 68 mm |
| Woofer Size | 10" | 12" | 15" | 18" |
| F(s) | 30.04 Hz | 26.92 Hz | 26 Hz | 27.59 Hz |
| Impedance | D1/D2 | D1 / D2 | D1 / D2 | D1 / D2 |
| Q(ms) | 4.88 | 4.95 | 4.847 | 5.777 |
| Q(es) | 0.285 | 0.3409 | 0.3665 | 0.4724 |
| Q(ts) | 0.267 | 0.3189 | 0.3408 | 0.4367 |
| V(as) | 12.98 Liters | 28.59 Liters | 78.08 Liters | 168.6 Liters |
| M(ms) | 281.4 grams | 440.9 grams | 472.8 grams | 410.9 grams |
| C(ms) | 0.074 | 0.079 | 0.082 | 0.081 |
| Sensitivity 1W/1m | 83.9 dB | 84.03 dB | 87.41 dB | 90.64 dB |
| Xmax | 36mm | 36mm | 36mm | 36mm |
| Sd | .044 m2 | 0.051 m2 | 0.082 m2 | .121 m2 |
| Displacement | 0.14³ | 0.16³ | 0.18³ | 0.23³ |
| Mounting Depth | 7 13/16" | 8 7/8" | 9 1/2" | 10.5" |
| Circle Cutout | 9 3/8" | 11 1/2" | 13 7/8" | 16 9/16" |
| Ported Enclosure (Cu Ft): | 1.25-1.75 FT³ | 1.75-2.75 FT³ | 3-6 FT³ | 5-7 FT³ |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
