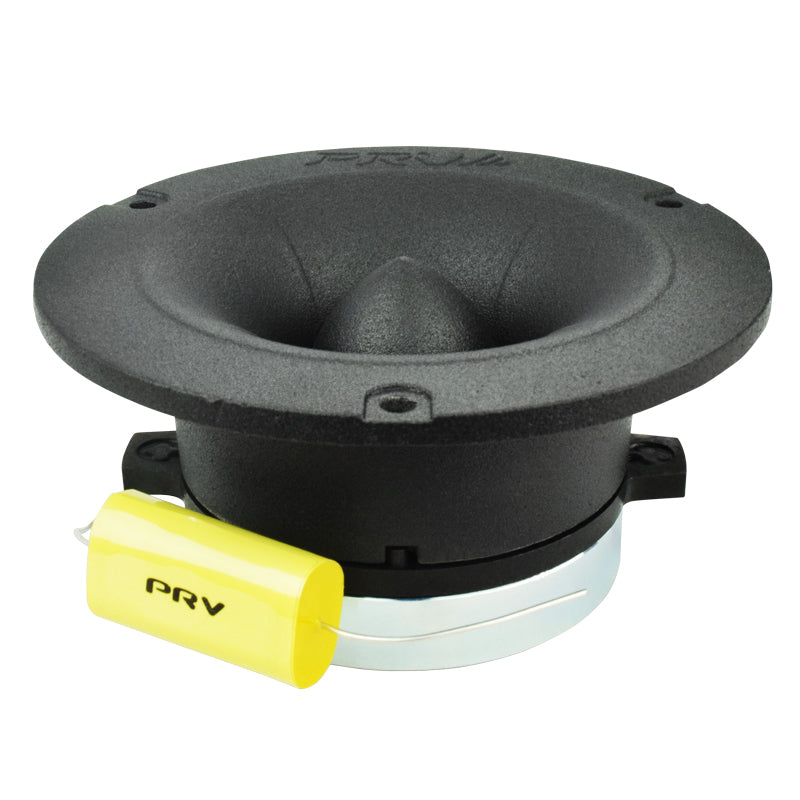

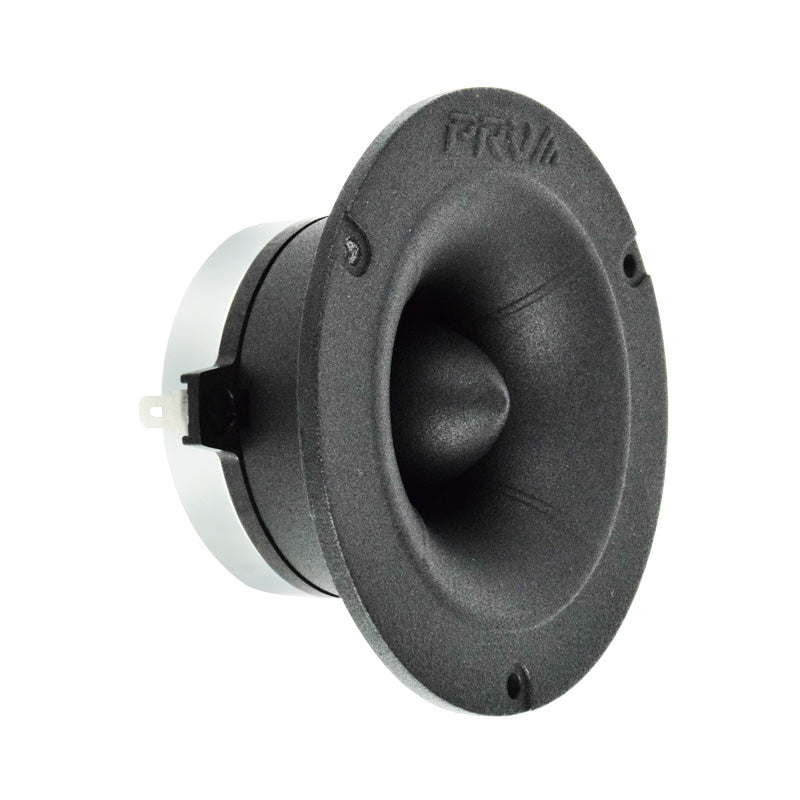

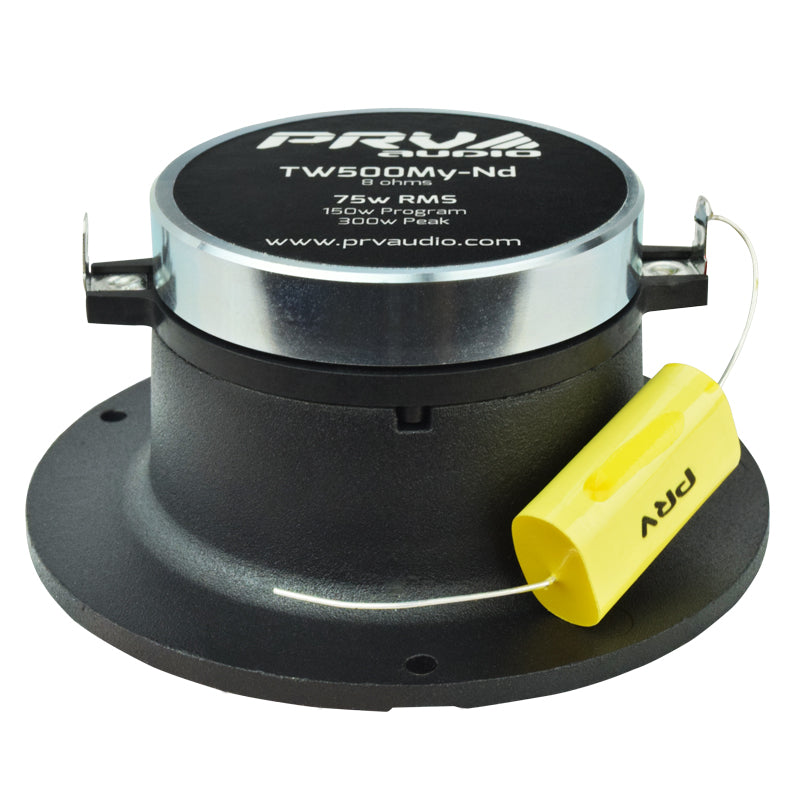

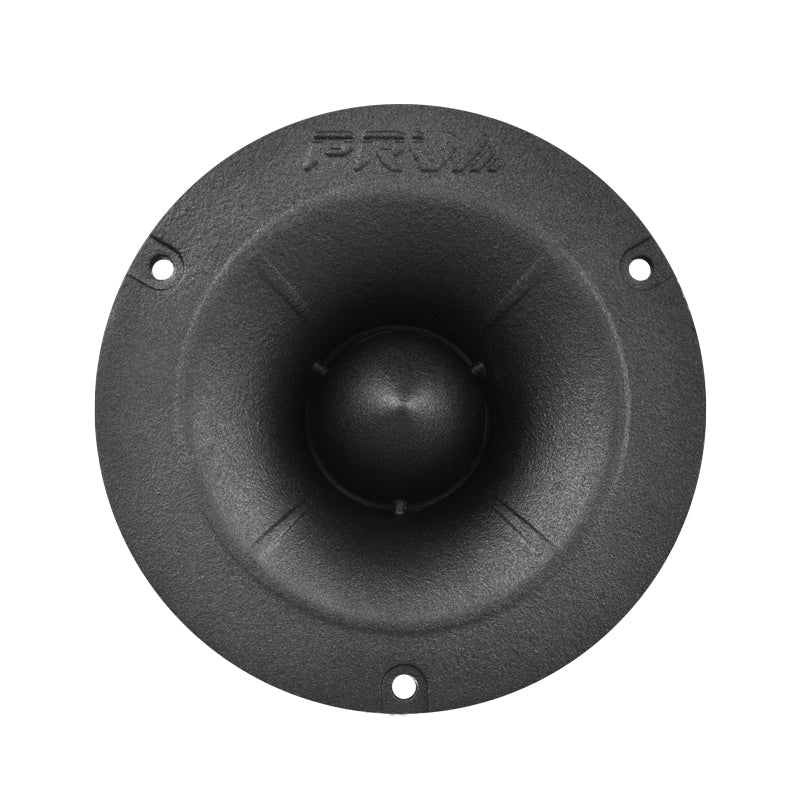

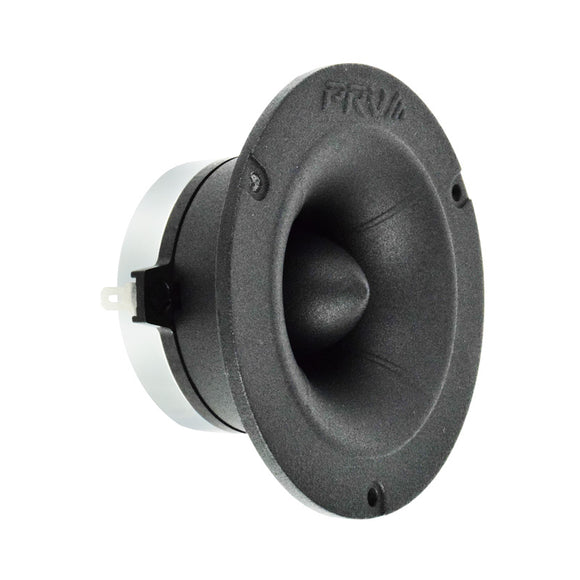

This Neodymium Bullet Tweeter features a Mylar diaphragm for low distortion and extended high frequency response. The Mylar diaphragm is light, thin and durable for long play applications.
TW500My-Nd is designed with cast aluminum frame to ensure a quality sound and long lasting play in most any environment. Replacement Diaphragms available.
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 75 Watts |
| Program Power | 150 Watts |
| Sensitivity 2.83V at 1m | 108 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
4000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 3,500 – 19,000 Hz |
| Voice Coil Diameter | 1.25”(32 mm) |
| Voice Coil Wire | Aluminum |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Mylar |
| Flux Density | 1.30 T |
| Magnet Material | Neodymium |
| Overall Depth | 1.77” (45 mm) |
| Mounting Depth | 1.61” (41 mm) |
| Overall Diameter | 4.0” (100 mm) |
| Cutout Diameter | 3.19” (81 mm) |
| Net Weight | 1.25 lbs (0.56 kg) |
| Shipping Weight | 1.33 lbs (0.60 kg) |
| Carton Dimensions W x L x H | 4.1” x 4.1” x 2.1” (105 x 105 x 55 mm) |
