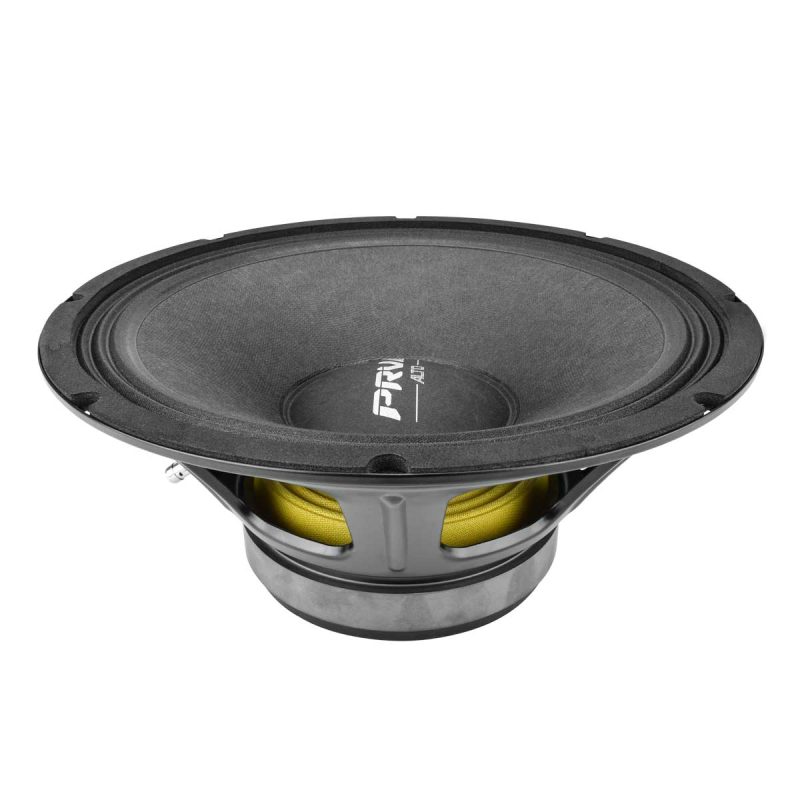

Coming soon, the brand new ALTO Series 12″ Woofer Loudspeaker.
Highlights:
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 400 Watts
- Program Power: 800 Watts
- Voice Coil Diameter: 2.5″
Great reasons to buy from us:
-
Quality Assurance
Quality Assurance -
Expert Guidance -
Customers Over Profits
Features
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 400 Watts |
| Program Power | 800 Watts |
| Sensitivity 2.83V at 1m | 97 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
115 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 55 – 5800 Hz |
| Voice Coil Diameter | 2.5″ (65 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Winding Depth | 16.2 mm |
| Former Material | Polyimide |
| Magnetic Gap Depth | 9.5 mm |
| Frame Material | Stamped Steel |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 93.9 l |
| Excursion (mathematical)*** | Xmax | 5.72 mm |
| Free Air Resonance | Fs | 49.8 Hz |
| Mechanical Factor | Qms | 11.89 |
| Electrical Factor | Qes | 0.49 |
| Total Factor | Qts | 0.47 |
| Cone Area | Sd | 552 cm² |
| Mechanical Mass | Mms | 46.24 g |
| Bl Factor | Bl | 12.71 Tm |
| Dc Resistance | Re | 5.5 Ohms |
| Inductance | Le | 0.45 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 38.90 g |
| Mechanical Compliance | Cms | 0.221 mm/N |
EXTRA INFO
| Overall Diameter | 12.03” (305.5 mm) |
| Front Mount Baffle Cutout | 11.06” (281 mm) |
| Mounting Depth | 4.96” (126 mm) |
| Overall Depth | 5.22” (132.5 mm) |
| Net Weight | 10.8 Lbs (4.9 kg) |
| Shipping Weight | 12.1 Lbs (2.29 kg) |
| Carton Dimensions W x L x H | 13.58” x 13.58” x 7.48” (345 x 345 x 190 mm) |
