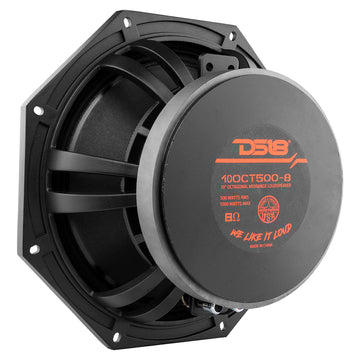

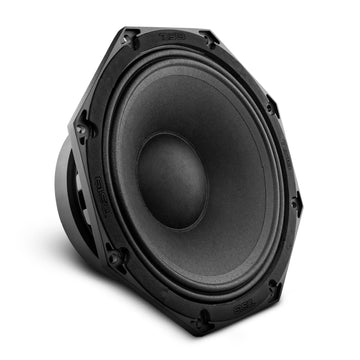

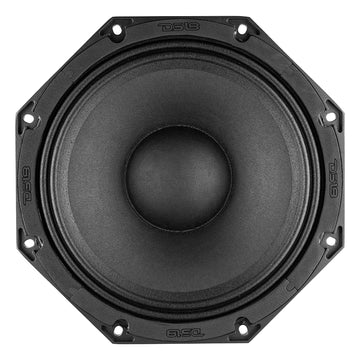

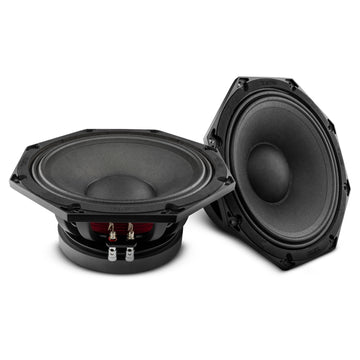

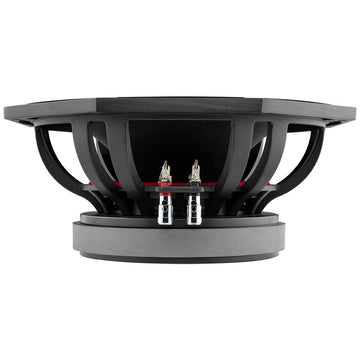

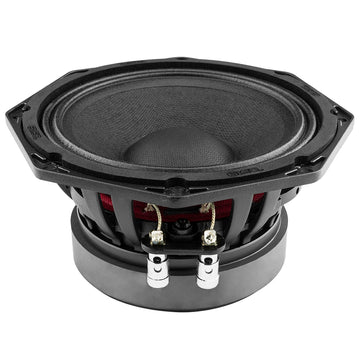

Get your system in shape with DS18’s new 10OCT500-8!
This 10” octagonal midrange loudspeaker offers better frequency response than your usual round speakers and can reproduce frequencies as low as 40Hz and as high as 8KHz!
Create an incredibly tangible soundstage that increases the quality and feel of the speakers in your system and sound created by them!
For our competitors, the octagonal speakers will give your show stopping system a cleaner look that can be easily organized for precise reproduction when you need it most.
It’s high sensitivity, rated at 95 dB, allows it to handle powers of 500 W RMS and 1000 W MAX. These speakers get LOUD easily, just the way we like it!
Install these 8 ohm speakers into your sound system correctly and enjoy intense volume that never fades!
Highlights
- Octagonal shape offers wider range of frequency response available to speakers of rounder shape
- Easier organization of the equipment in your system
- 500 RMS Power Handling
- 1000 MAX Power Handling
![](https://cdn.shopify.com/s/files/1/0018/0142/0861/files/10OCT500-8-A__01.jpg?v=1677259704)
![](https://cdn.shopify.com/s/files/1/0018/0142/0861/files/10OCT500-8-A__02.jpg?v=1677259704)
![](https://cdn.shopify.com/s/files/1/0018/0142/0861/files/10OCT500-8-A__03.jpg?v=1677259704)
![](https://cdn.shopify.com/s/files/1/0018/0142/0861/files/10OCT500-8-A__04.jpg?v=1677259704)
![](https://cdn.shopify.com/s/files/1/0018/0142/0861/files/10OCT500-8-A__05.jpg?v=1677259704)
SPECIFICATIONS |
|
Nominal Diameter |
10" / 254mm |
Nominal Impedance |
8 ohms |
RMS Power Handling |
500W |
MAX Power Handling |
1000W |
Sensitivity (1w/1m) |
100dB |
Frequency Response |
40Hz-8KHz |
Recommended HI Pass Crossover |
80Hz |
Sold As Pair or Single |
Single |
Grill Included |
No |
MOTOR |
|
Voice Coil Diameter |
2.6" / 66mm |
Voice Coil Former Material |
TIL |
Winding Material |
CCAW |
Cone Material |
Paper |
Dust Cap Material |
Paper |
Surround Material |
Cloth |
Basket Material |
Aluminum |
Basket Color/Finish |
Black Sandblasted |
Magnet Material |
Ferrite |
Magnet Weight |
62.3oz |
Displacement Volume |
0.088L / 0.0031ft3 |
MEASUREMENT |
|
Overall Diameter |
10.3" / 263mm |
Overall Depth |
4.8" / 124mm |
Front Mount Baffle Cutout |
9.1" / 233mm |
Mounting Depth |
4.3" / 110mm |
Motor Diameter |
6.6" / 168mm |
