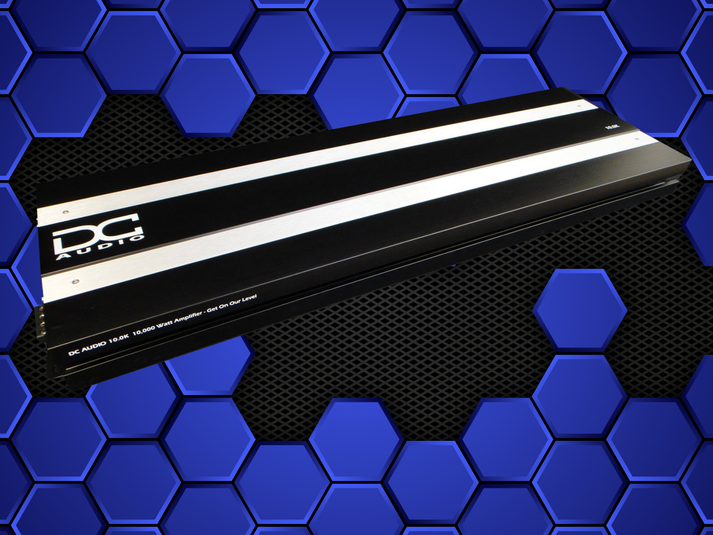

The 10.0kw competition series amplifier is a 10,000 watt mono block. It is built for 12 volt audio systems. It will not operate on 16 or 18 volt systems. It is a linkable amp and designed to run at 1 ohm per amp or 2 ohms when strapped for 20,000 watts of power.
It comes with a bass knob and a clipping indicator. For power inputs it will accept triple 0 awg for power and triple 0 awg for ground.
| Features | Voltage | 10.0kw | |
| Output Power (RMS) | 4 ohm | 14.4V | 3,000Wx1 |
| 2 ohm | 14.4V | 5,500x1 | |
| 1 ohm | 14.4V | 10,000Wx1 | |
| 1 ohm | 16V | N/A | |
| 1 ohm | 18V | N/A | |
| Input Sensitivity | 6V~0.2V | ||
| Low Pass Filter | Switchable | ||
| ( @ 24 dB Slope) | Variable | Hz | 35~250 |
| Subsonic Filter | Switchable | ||
| ( @ 24 dB Slope) | Variable | Hz | 10~50 |
| Bass Boost | Variable | dB | 0-9dB |
| Frequency Response | Hz | 15-270 | |
| Signal to Noise Ratio | dB | 100 | |
| Damping factor | 150< | ||
| Efficiency @ 4ohm | % | Over 90% | |
| THD @ 4ohms | Less than 0.1% | ||
| Fuse Rating | 1,000 Amps | ||
| Linked Fuse Rating | 2,000 Amps | ||
| Indicator | Power | Yes | |
| Protection | Yes | ||
| Clip | No | ||
| Speaker & Power terminal | Mold Type | Yes | |
| Power | Gauge | 0Ga x 3 | |
| Heatsink Length | 37.0" (940mm) | ||
| Heatsink Length | 11.5" (292mm) | ||
| Heatsink Length | 2.6" (66mm) | ||
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
